TECHNICAL SPECIFICATIONS

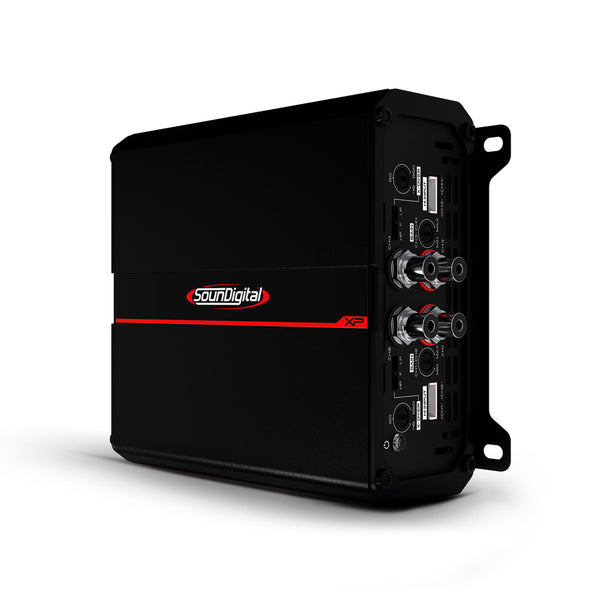

XP 2400.4 – 2Ω
Power @ 4Ω: 4 X 262 WRMS
Power @ 2Ω: 4 X 396 WRMS
Power @ 1Ω: 4 X 600 WRMS
Bridge Power @ 4Ω: 2 X 792 WRMS
Bridge Power @ 2Ω: 2 X 1200 WRMS
Operating Voltage: 9V – 16V
Current Draw (Music): 98 A
Current Draw (Max): 195 A
Recommended Fuse (Music): 120 A
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 100dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Recommended Battery: 120aH
Power Cable: 4AWG
Speaker Cable: 13AWG
Product Dimensions: 8.99 x 5.35 x 2.22 in
Product Dimensions: 22.8 x 13.6 x 5.6 cm
XP 2400.4 – 4Ω
Power @ 4Ω: 4 X 396 WRMS
Power @ 2Ω: 4 X 600 WRMS
Power @ 1Ω: N/A
Bridge Power @ 4Ω: 2 X 1200 WRMS
Bridge Power @ 2Ω: N/A
Operating Voltage: 9V – 16V
Current Draw (Music): 98 A
Current Draw (Max): 195 A
Recommended Fuse (Music): 120 A
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 92dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Recommended Battery: 120aH
Power Cable: 4AWG
Speaker Cable: 13AWG
Product Dimensions: 8.99 x 5.35 x 2.22 in
Product Dimensions: 22.8 x 13.6 x 5.6 cm
